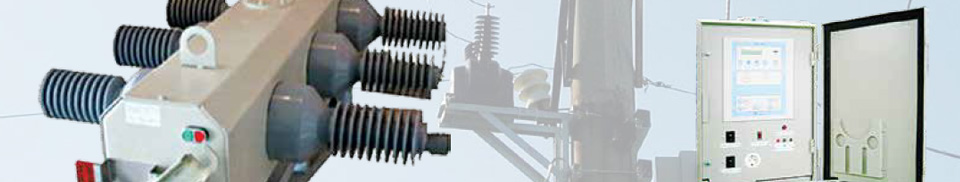

Sectionalizer
OVERHEAD LINE LOAD BREAK SWITCH
Sectionilizers are designed for automatically isolating the faulted sections of an overhead line distribution system. They generally used together with reclosers in common practice and can be integrated in to a monitoring and controlling interface system. Simply sectionilizers isolate permanent faults and provide power continuity in the rest of the system.
Rated Voltage | [kV] | 12kV | 36kV |
Rated Current | [A] | 630 | 630 |
Breaking Capacity | [kA] | 12,5 | 12,5 |
Making Capacity / Peak | [kA] | 31,5 | 31,5 |
Impulse Withstand Voltage | [kV] | 75 | 170 |
Power Frequency Withstand Voltage (1min) | [kV] | 28 | 70 |
Rated Frequency | [Hz] | 50 | 50 |
Rated Duration of Short-time Current | [sec.] | 1 | 1 |
Rated Short Circuit Making | 5/E2 Class | 5 / E2 Class | |
Control Circuit Power Fr. Wtihstand Vol.(1min) | [kV] | 2 | 2 |
Control Circuit Impulse Withstand Vol. | [kV] | 5 | 5 |
Humidity | % | 95 | 95 |
Frost Class | Class 10 | Class 10 | |
Attitude | [Meter] | 2000 | 2000 |
Min/max. Temperature Range | [°C] | (-) 25°C – (+) 55°C(-) 5°C – (+) 40°C | (-) 25°C – (+) 55°C |
Auxiliary Voltage | [Vac/dc] | 24 Vdc / 127-220 Vac220 Vac / 24-48-110-220 Vdc | 24 Vdc127-220 Vac |
Mechanical Class | M2 Class – 5000 OperationM1 Class 2000 Operation | M2 Class5000 Operation | |
Electrical Class of Contacts | E3 Class – 100 Open / CloseE2 Class | E3 Class100 Open / Close | |
SF6 Gas Pressure | [Bar] | 1.6 | 1.6 |
Total Weight (for manual operation) | [Kg] | 440 | 520 |
Total Gross Weight | [Kg] | 475 | 565 |
Overall Dimensions (for only OYA) | H [mm] | 970 | 389 |
L [mm] | 1120 | 1475 | |
W [mm] | 1012 | 1012 |
