Load Break Switch Circuit Breaker

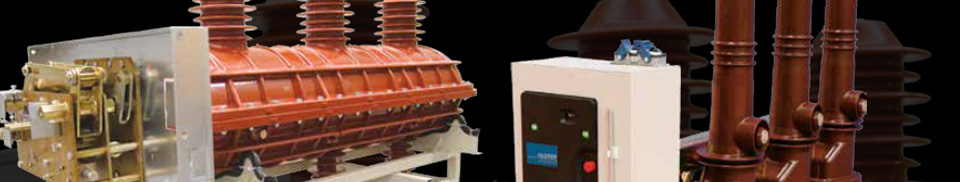

Ulusoy wall side type vacuum & SF6 Circuit Breakers and SF6 Load Break Switches are developed to be installed into metal Enclosed Switchgear Panels.
| Ulusoy Circuit Breaker | Ulusoy Load Break Switch | ||
| Rated Voltage | 36kV | 24kV | 36kV |
| Rated Current | 630-1250 | 630 | 630 |
| Short Circuit Withstand | 16kA/20kA – 3sec | 20kA – 1sec | 16kA/20kA -1sec |
| Rated Peak withstand Current | 50kA | 50kA | 50kA |
| Breaking and Making Short Circuit Capacity | 20kA | 16kA | 16kA, E2 Class |
| Degree of Protection | IP54 | IP54 | IP54 |
| Dimension (Width-Length-Height) | 360-1550-803 | 340-873-491 | 664-1230-626 |
